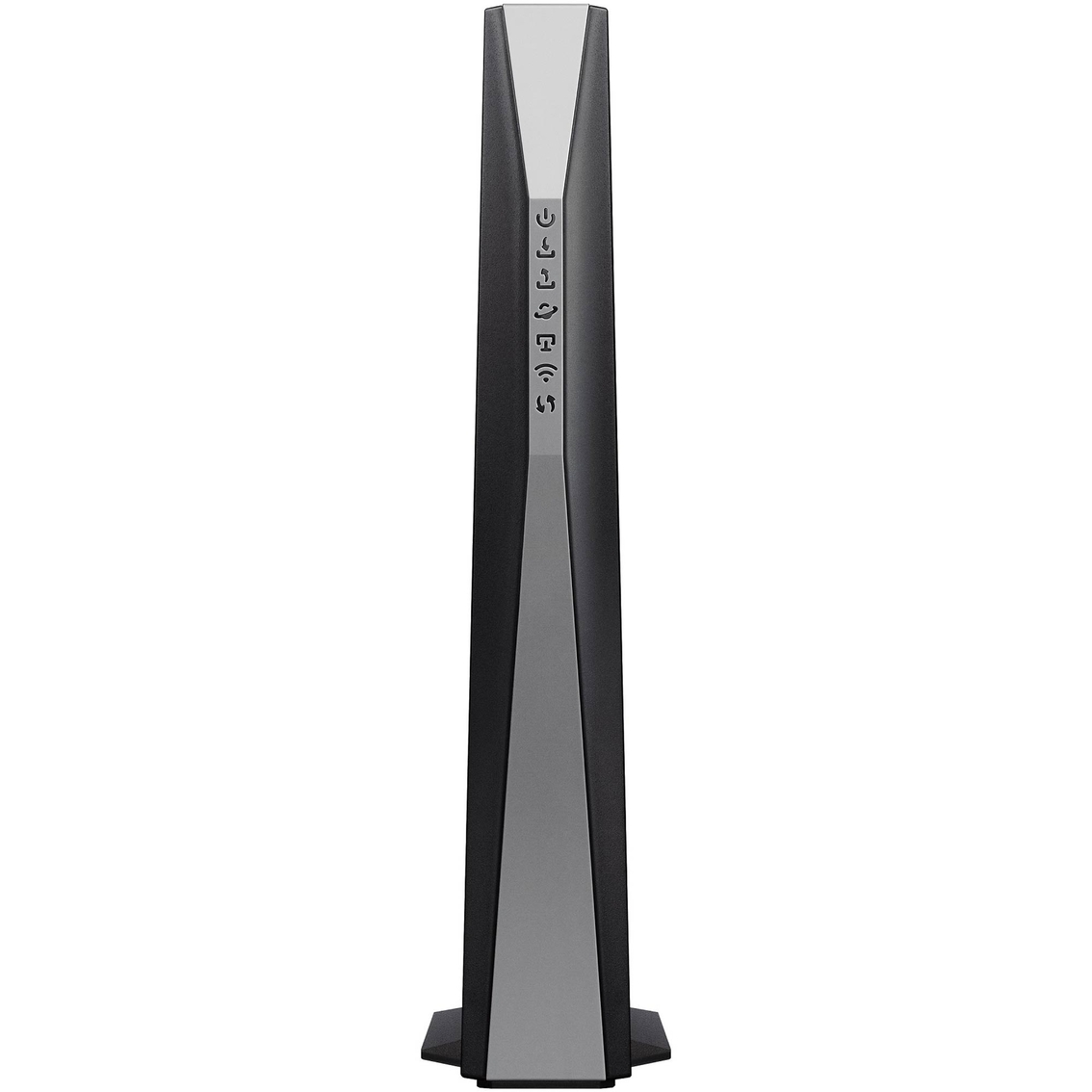

Archer CR700 v1.x
AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router
The TP-LINK Archer CR700 v1.x router has Gigabit WiFi, 4 N/A ETH-ports and 0 USB-ports. It has a total combined WiFi throughput of 1750 Mpbs.
It is also known as the TP-LINK AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router.
Quick links:
Default password/Login
User Manuals
Archer CR700 v1.x router specifications (specs)
CPU: n/a
RAM: 256 MiB
Flash: 16 MiB
Custom firmwares: None
WiFi: Gigabit (abgn+ac)
WiFi bands: 2.4GHz & 5GHz
WiFi throughput: 1750 Mpbs
WAN: None
ETH: 4 x N/A ports
USB-ports: 0
TP-LINK Archer CR700 review (quick overview)
Here is the quick comparison of how the TP-LINK Archer CR700 compares to other routers on our site:
For a full list of routers and how they compare to the Archer CR700 v1.x, check the Router Buying Guide which will help you buy the most price-competitive router.
Hard reset instructions for TP-LINK Archer CR700 v1.x
If your Archer CR700 v1.x router is not working as it should, dropping connections or not
being
responsive, you should first do a reset of the router to see if the problems persist. Other
scenarios where you might want to reset your router is if you've forgotten the password or
misconfigured it and can't get access anymore.
Your can reset your TP-LINK Archer CR700 v1.x in the following way(s):
Through the web interface
- Open a browser and navigate to the web interface of the router (check default settings below)
- In the menu look for System tools and under there find the Factory defaults option
- On the Factory defaults page click on the Restore button to perform the reset.
Withe the RESET/WPS button
- Have the unit powered on
- Press and hold the reset (sometimes reset/WPS) button for 10 seconds with a paperclip or other sharp object.
- When the SYS led start blinking quickly release the reset button and wait for router to boot back up.
The 30-30-30 reset
If the above instructions don't work you can always try the 30-30-30 reset as follows:- When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
- While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
- While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.
This process usually works for resetting any router to it's factory setting.
If that doesn't work be sure to check out the
questions and answers
incase someone else has had similar problems resetting their router.
Note: It is worth reading more about
how to reset routers with the 30 30 30 reset and what the risks and
considerations
are when resetting your router this way, instead of just rebooting it.
Default factory settings for TP-LINK Archer CR700 v1.x
If you have performed a reset of your Archer CR700 v1.x device or not changed the defaults, you should be able to access it with the following settings:
Default username: admin TP-LINK router default password list
Default password: adminĀ
Default subnet mask: 255.255.255.0
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
Archer CR700 v1.x Firmwares
Staying up to date with the latest firmware is a good idea to keep your router even more
secure
from various security flaws.
If you want to squeeze a little bit of extra functionality out of your router, consider
flashing
an open-source firmware like dd-wrt, openWRT or LEDE. Flashing a custom ROM can greatly
increase
the stability and functionality of your old router.
Following are the firmwares that we have identified existing for the TP-LINK Archer CR700 v1.x:
TP-LINK stock firmware for the Archer CR700 v1.x
Stock firmwares for the Archer CR700 v1.x are available under the download section on the modem's support page. You can also refer to the router's manual for instructions on how to upgrade the firmware.
