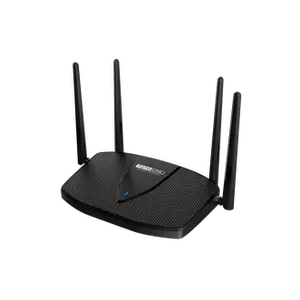

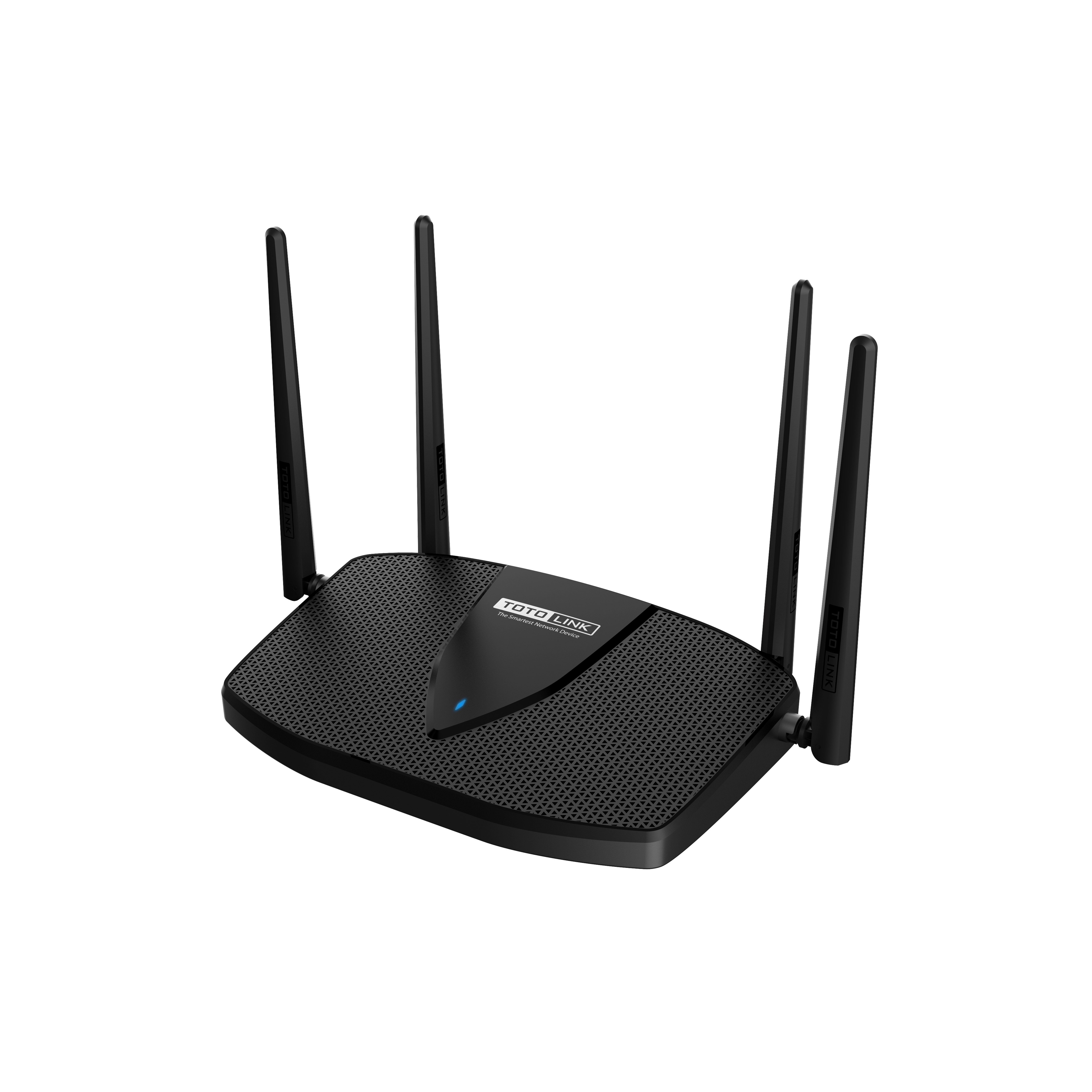

X5000R

The TOTOLINK X5000R router has Gigabit WiFi, 4 N/A ETH-ports and 0 USB-ports.

Quick links:
Default password/Login
Login instructions

X5000R router specifications (specs)

System specs
CPU: 880 MHz
RAM: 256 MiB
Flash: 16 MiB
Custom firmwares: None

Connectivity
WiFi: Gigabit (abgn+ac+ax)
WiFi bands: n/a
WiFi throughput: n/a
WAN: 1 x N/A port
ETH: 4 x N/A ports
USB-ports: 0

Hard reset instructions for TOTOLINK X5000R

If your X5000R router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your TOTOLINK X5000R in the following way(s):

The 30-30-30 reset

There are no specific instructions for this model yet, but you can always do the 30-30-30 reset as follows:

When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.

Default factory settings for TOTOLINK X5000R

If you have performed a reset of your X5000R device or not changed the defaults, you should be able to access it with the following settings:

Default Network name (SSID): TOTOLINK_X5000R,TOTOLINK_X5000R_5G
Default Gateway IP: 192.168.0.1 TOTOLINK login instructions
Default username: admin TOTOLINK router default password list
Default password: admin
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.0.1
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.

To login to the X5000R router and change the settings, you can follow these steps:

Make sure you are connected to the router's network, either by Wi-Fi or ethernet cable.
Open your browser and visit http://192.168.0.1
You should be prompted with a login dialogue.
Enter the username: admin and the password admin
Note: If you have already changed the password use that instead.
You will now be logged in. If you haven't yet changed the defaul password, we recommend that you change it first thing you do after logging in.

If these instructions don't work for your router, you can always try a factory reset to get the default, or try some other common TOTOLINK credentials, as they can usually be shared across models/variants.
