SMCWBR14-3GN
Mobile 3G Router

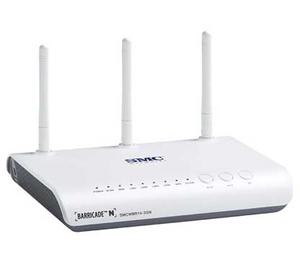

Thumbnail for the SMC SMCWBR14-3GN router with 300mbps WiFi, 4 100mbps ETH-ports and
0 USB-ports

The SMC SMCWBR14-3GN router has 300mbps WiFi, 4 100mbps ETH-ports and 0 USB-ports.
It is also known as the SMC Mobile 3G Router.

Quick links:
Default password/Login
Login instructions
User Manuals

SMCWBR14-3GN router specifications (specs)

System specs
CPU: 300 MHz
RAM: 16 MiB
Flash: 4 MiB
Custom firmwares: None

Connectivity
WiFi: 300mbps (bgn)
WiFi bands: 2.4GHz
WiFi throughput: n/a
WAN: 1 x 100mbps port
ETH: 4 x 100mbps ports
USB-ports: 0

Hard reset instructions for SMC SMCWBR14-3GN

If your SMCWBR14-3GN router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your SMC SMCWBR14-3GN in the following way(s):

The 30-30-30 reset

There are no specific instructions for this model yet, but you can always do the 30-30-30 reset as follows:

When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.

Default factory settings for SMC SMCWBR14-3GN

If you have performed a reset of your SMCWBR14-3GN device or not changed the defaults, you should be able to access it with the following settings:

Default Network name (SSID): SMC
Default Gateway IP: 192.168.2.1 SMC login instructions
Default username: admin SMC router default password list
Default password: smcadmin
Default subnet mask: 255.255.255.0
Default DNS server: 192.168.2.1
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.

To login to the Mobile 3G Router and change the settings, you can follow these steps:

Make sure you are connected to the router's network, either by Wi-Fi or ethernet cable.
Open your browser and visit http://192.168.2.1
You should be prompted with a login dialogue.
Enter the username: admin and the password smcadmin
Note: If you have already changed the password use that instead.
You will now be logged in. If you haven't yet changed the defaul password, we recommend that you change it first thing you do after logging in.

If these instructions don't work for your router, you can always try a factory reset to get the default, or try some other common SMC credentials, as they can usually be shared across models/variants.
