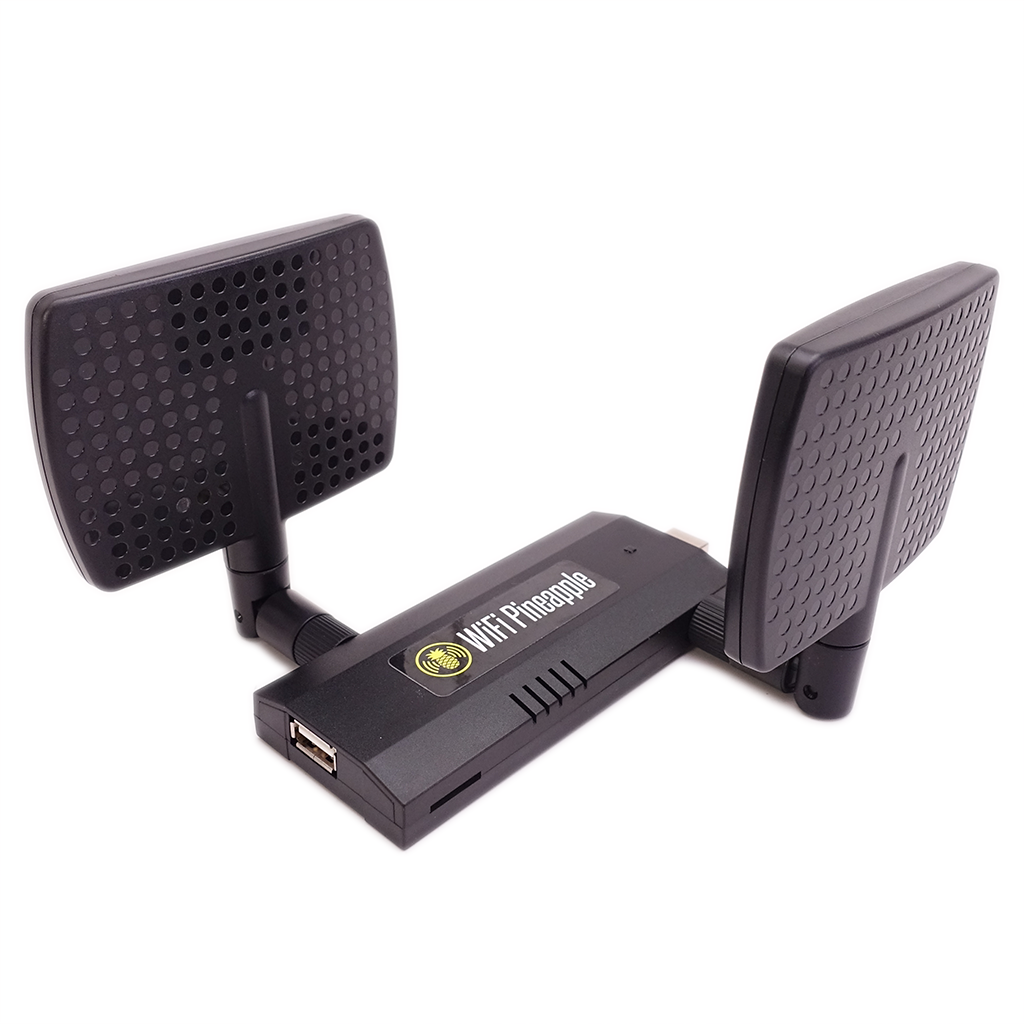

WiFi Pineapple Mark V

The Hak5 WiFi Pineapple Mark V router has 300mbps WiFi, 1 100mbps ETH-ports and 0 USB-ports.

Quick links:
Default password/Login
Login instructions
User Manuals

WiFi Pineapple Mark V router specifications (specs)

System specs
CPU: n/a
RAM: 64 MiB
Flash: 16 MiB
Custom firmwares: None

Connectivity
WiFi: 300mbps (bgn)
WiFi bands: 2.4GHz
WiFi throughput: n/a
WAN: None
ETH: 1 x 100mbps port
USB-ports: 0

Hard reset instructions for Hak5 WiFi Pineapple Mark V

If your WiFi Pineapple Mark V router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your Hak5 WiFi Pineapple Mark V in the following way(s):

The 30-30-30 reset

There are no specific instructions for this model yet, but you can always do the 30-30-30 reset as follows:

When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.

Default factory settings for Hak5 WiFi Pineapple Mark V

If you have performed a reset of your WiFi Pineapple Mark V device or not changed the defaults, you should be able to access it with the following settings:

Default Network name (SSID): Pineapple
Default Gateway IP: 172.16.42.1 Hak5 login instructions
Default username: root
Default password: change_on_install
Default subnet mask: 255.255.255.0
Default DNS server: 172.16.42.1
Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.

To login to the WiFi Pineapple Mark V router and change the settings, you can follow these steps:

Make sure you are connected to the router's network, either by Wi-Fi or ethernet cable.
Open your browser and visit http://172.16.42.1
You should be prompted with a login dialogue.
Enter the username: root and the password change_on_install
Note: If you have already changed the password use that instead.
You will now be logged in. If you haven't yet changed the defaul password, we recommend that you change it first thing you do after logging in.

If these instructions don't work for your router, you can always try a factory reset to get the default, or try some other common Hak5 credentials, as they can usually be shared across models/variants.
