DSL-504T
ADSL Modem

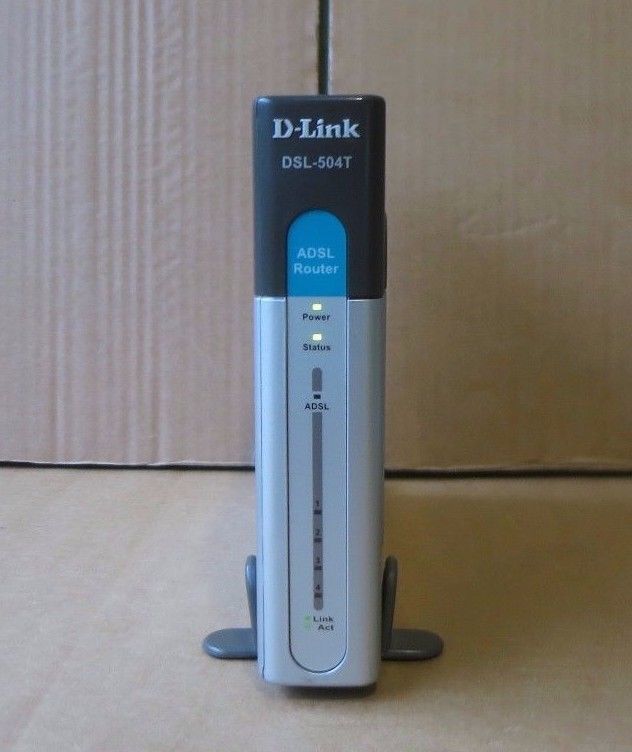

Thumbnail for the D-Link DSL-504T router with No WiFi, 4 100mbps ETH-ports and
0 USB-ports

The D-Link DSL-504T router has No WiFi, 4 100mbps ETH-ports and 0 USB-ports.
It is also known as the D-Link ADSL Modem.

Quick links:
Default password/Login

DSL-504T router specifications (specs)

System specs
CPU: 150 MHz
RAM: 16 MiB
Flash: 4 MiB
Custom firmwares: OpenWrt

Connectivity
WiFi: No ()
WiFi bands: n/a
WiFi throughput: n/a
WAN: None
ETH: 4 x 100mbps ports
USB-ports: 0

Hard reset instructions for D-Link DSL-504T

If your DSL-504T router is not working as it should, dropping connections or not being responsive, you should first do a reset of the router to see if the problems persist. Other scenarios where you might want to reset your router is if you've forgotten the password or misconfigured it and can't get access anymore.
Your can reset your D-Link DSL-504T in the following way(s):

With the reset button

Locate the reset button on the back off the router
While the unit is powered on, press the reset button with a sharp object (e.g. paperclip)
Hold the button pressed for 10 seconds, then release.
The unit will reboot by itself and once the WLAN light stops blinking the factory reset is done.
You can now setup your router again through the user interface

The 30-30-30 reset

If the above instructions don't work you can always try the 30-30-30 reset as follows:

When router is powered on, press the reset button and hold for 30 seconds. (Use a paper clip or something sharp)
While holding the reset button pressed, unplug the power of the router and hold the reset button for 30 seconds
While still holding the reset button down, turn on the power to the unit again and hold for another 30 seconds.

This process usually works for resetting any router to it's factory setting.

Note: It is worth reading more about how to reset routers with the 30 30 30 reset and what the risks and considerations are when resetting your router this way, instead of just rebooting it.

Default factory settings for D-Link DSL-504T

If you have performed a reset of your DSL-504T device or not changed the defaults, you should be able to access it with the following settings:

Default subnet mask: 255.255.255.0

Note: If you are using the default settings you should change them to increase security and prevent unathorized access to your network.
